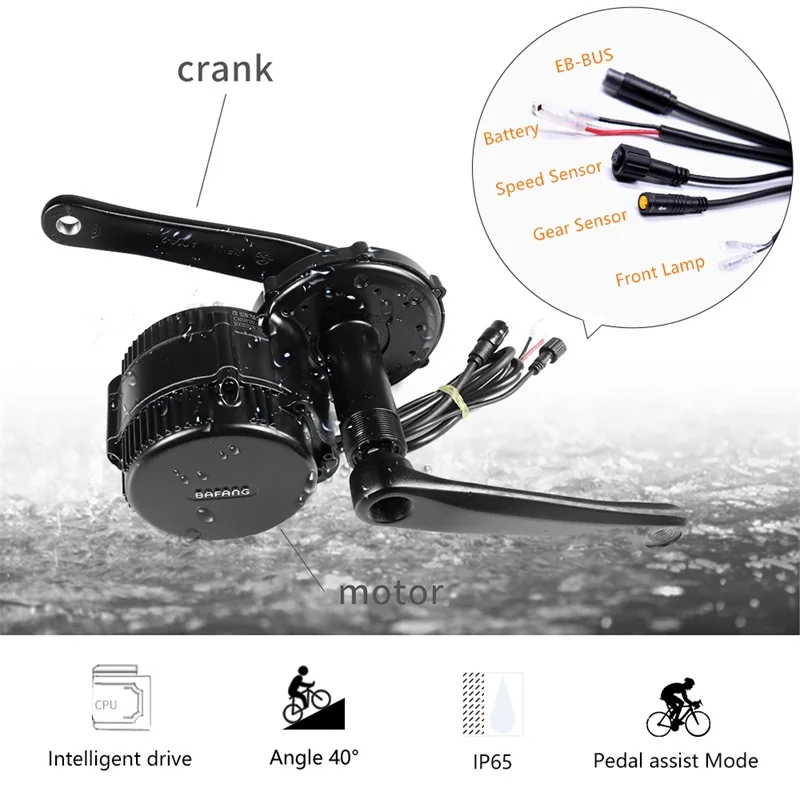

Ebike Mid Drive Motor Kits BBS02B 48V 750W 8fun Bafang Electric Bicycle Mid Crand Conversion Kits With Display 500C SW102 C961

Brand Name BAFANG

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

Bafang Motor Model MM G340.750 BBS02B

Voltage Power 48V 750W

RPM 130-150

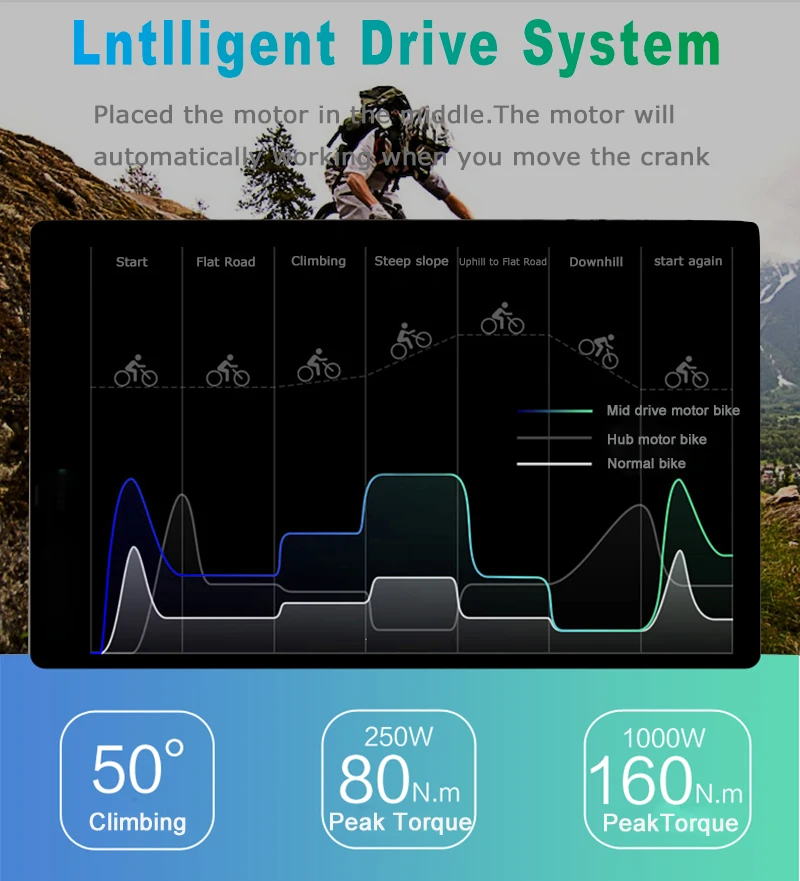

Max Torque 160 N.m

Weight 4.3 Kg

Waterproof Rate IP 65

Efficiency ≥ 85%

Chain Wheel Option 44T 46T 48T 52T

Fit For Bike Bottom Bracket 68-73 mm EBike

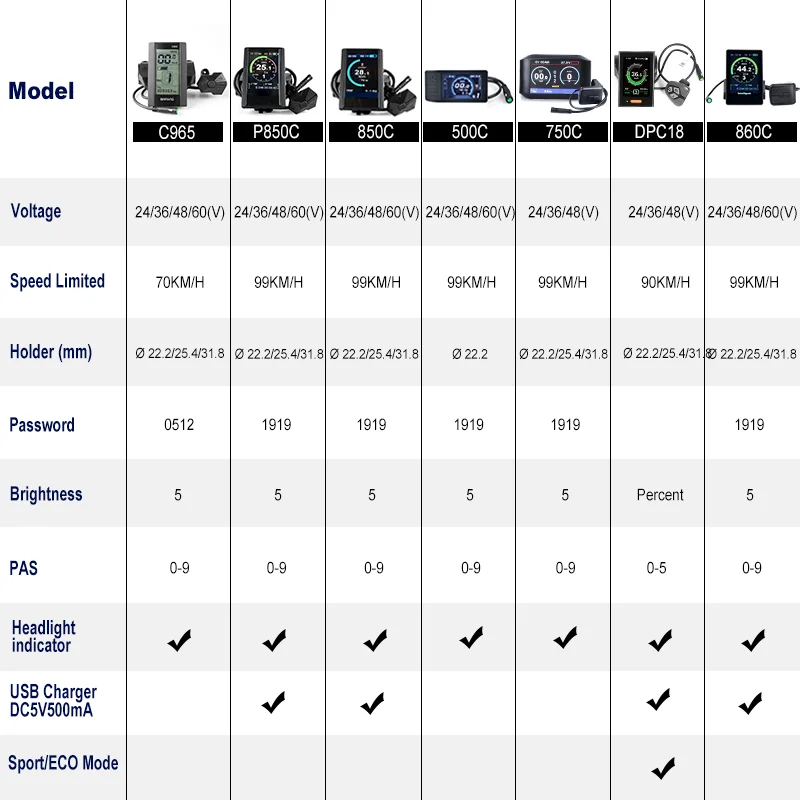

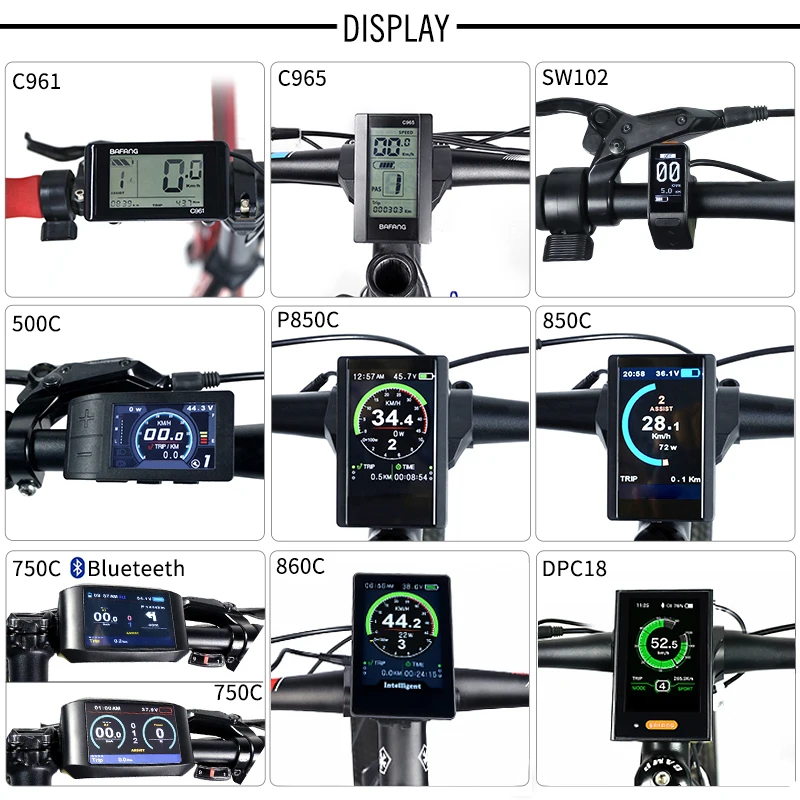

Display Option C965 C961 P850C SW102 500C 750C DPC18

Controller Current Max Limit 25A

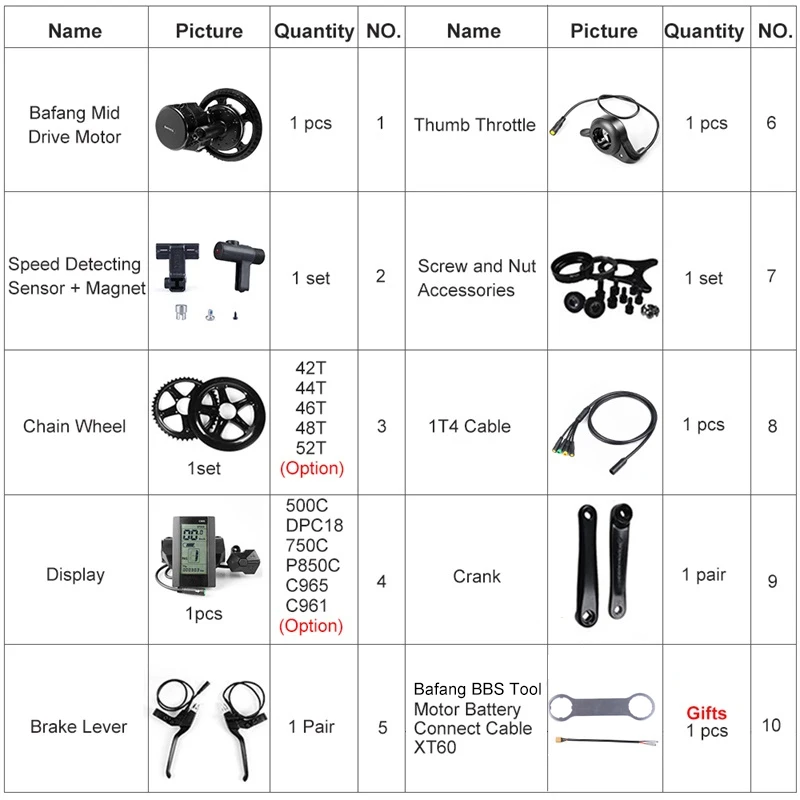

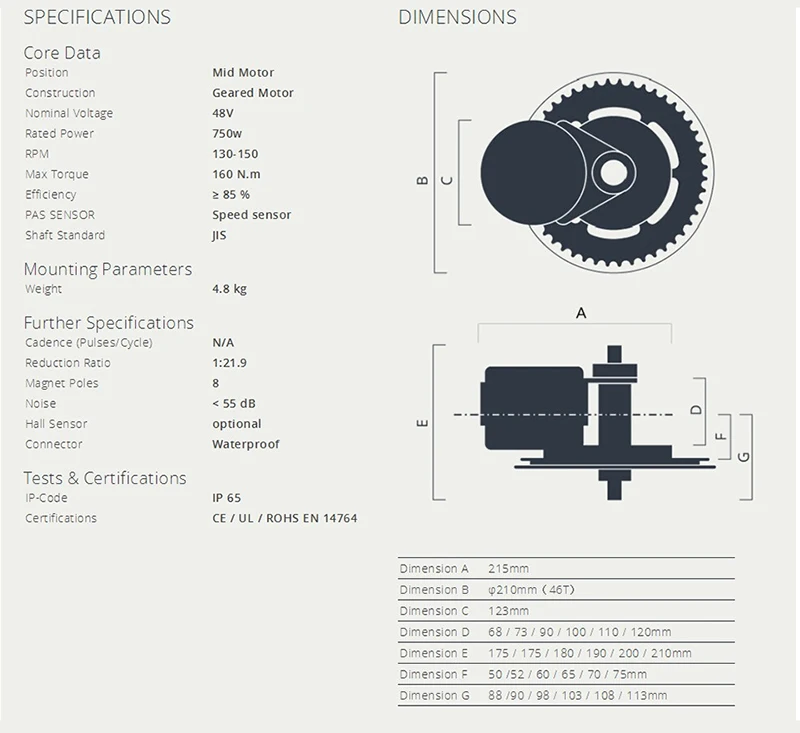

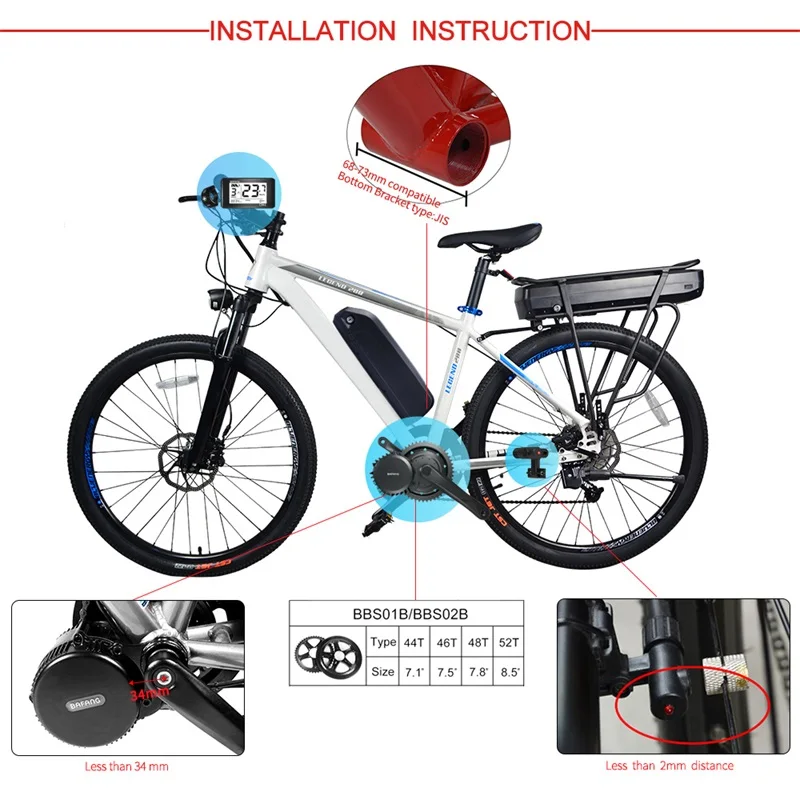

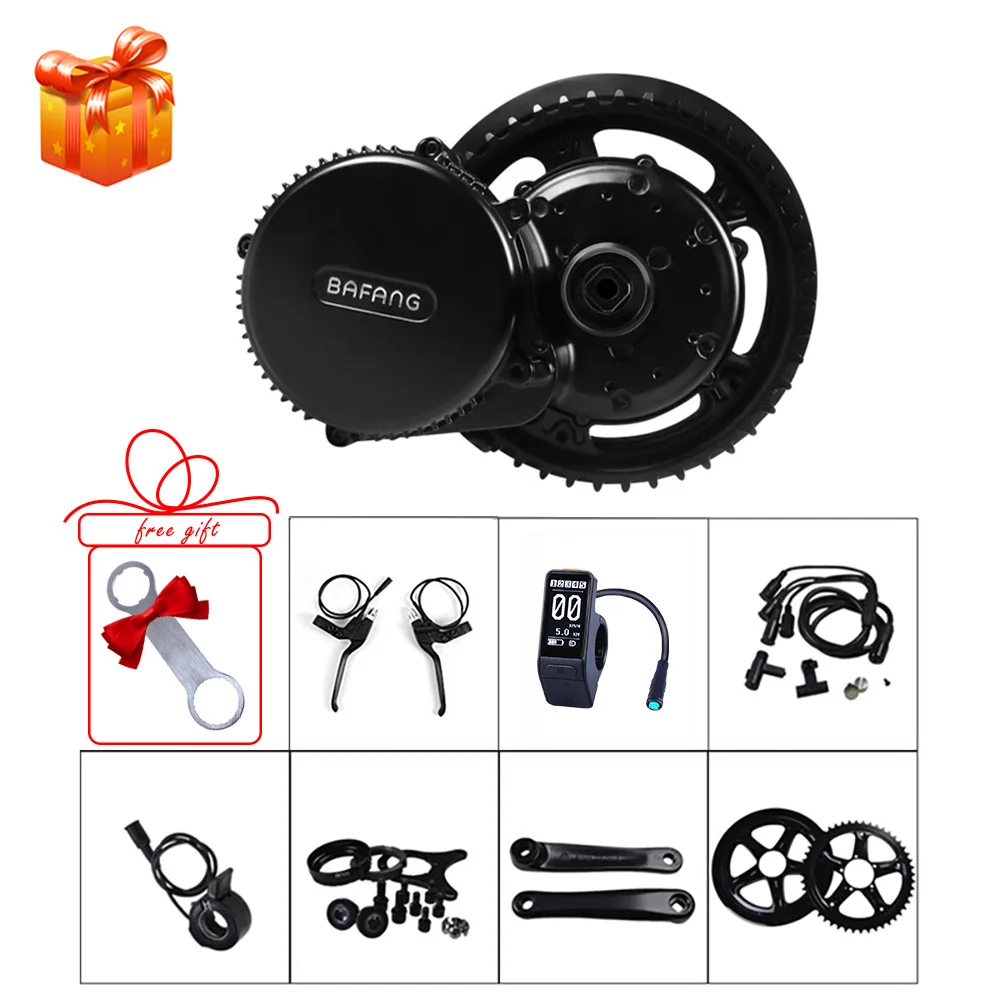

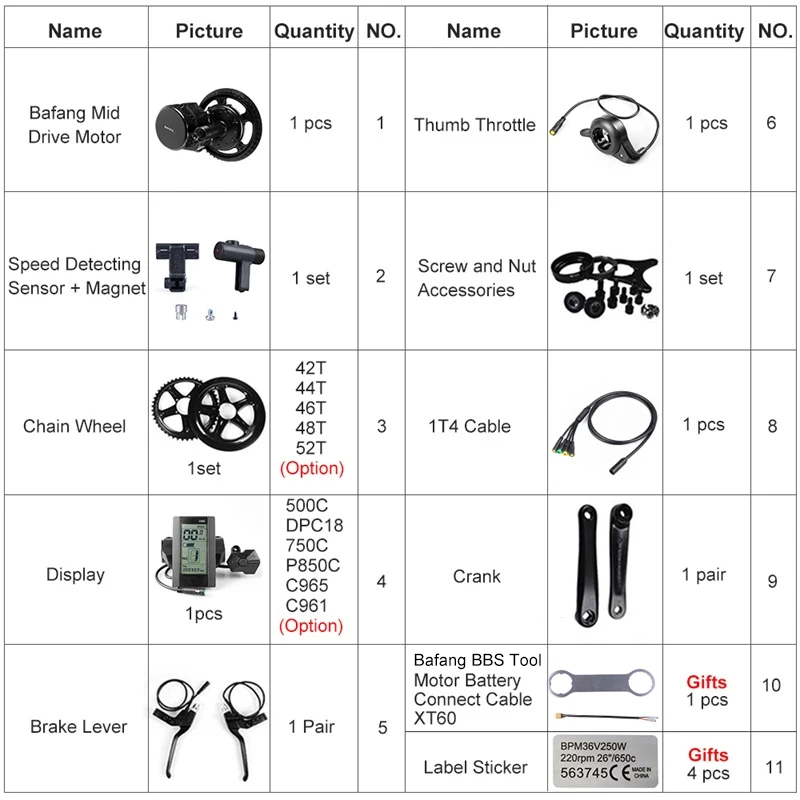

​ Purchase Note: This motor is fit for theBike Bottom Brackets/BBis68mm-73mmand theInner Diamaterof the bracket(>33.5mm)/should be not less than 33.5mm, please check carefully about your bicycle BB size.(Motor Design is fit for bottom bracket 68mmbike,there is 8 pcs gaskets in the parcel can make it fit bottom bracket 73mm bike,please know) Motor Specification: Power:750WVoltage:48V Controller Current: 25A No Load Speed(RPM):140-160 Load Speed(RPM):120-135 MAX Torque:160 N.m Efficiency:>85% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Motor Operation Temperature:-20℃-45℃ Max speed:52km/h (75Kg Load,44T,different work condition different speed) Speed within 25-30km/h can help you ride further Packing list: BBS02B 48V 750W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Chain Wheel: 44T 46T 48T 52T (We can help you to change the chain wheel size) Display * 1 DPC18 750C P850C C965 C961 SW102 500C 750C​ Brake Lever * 1 Pair (We can change these toHydraulic Brake Sensor for free) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair Gifts:Install Wrench + XT60 Cable *1 Set Label Stickers * 4pcs(ForEU) Gaskets * 8 Pcs For Bottom Bracket 73mm Our Service: Change Display: Price for (C961=C965)(500C=SW102)(P850C=850C=750C),if you want other display please choice the same price one and remark iton your order or leave me message,i'd be happy to replace it for you. Sensor For Hydraulic Brakes:If you need this hydraulic brake sensor please remark it on your order or leave me message. Change Chain Wheel:Price for 44T 46T 48T 52T are the same,if you need other size remark on your order is ok. Warranty:​Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time : We will reply each clients message as soon as possible ,we will not let you wait too long. About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium Bulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia, Austria Russian Federation,US,UK: Tax Service Include Other Country:You can remark Tax requirements on your order or leave me message. ​ Recommended E-bike Accessories Recommended Motor Kits Battery Include Recommended E-bike Battery Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stars feedback, if you have any problems, please contact us, we will do our best to service with you.
